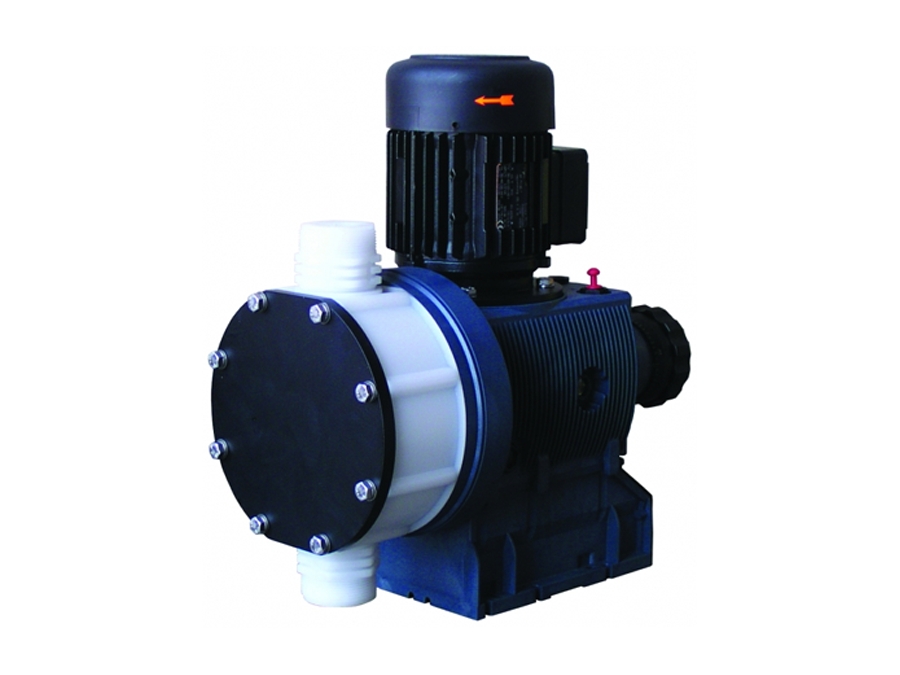

Mechanically operated diaphragm dosing pumps with three-phase or mono-phase electric motor.
The casing is manufactured using PPE, with IP65, providing good resistance in aggressive environments.
The continuous regulation of the diaphragm´s course is carried out by varying the actuator´s eccentricity, thus resulting in a continuous movement in the mechanism and the dosiied luid, minimising friction and mechanical and hydraulic shocks.
- Dosing heads manufactured in PVDF or 316 stainless steel and standard diaphragm in PTFE.
- Optional integrated microprocessor controlled module has the following options available:
- Reed type pulse control;
- Analogue control signal (4-20 mA);
- Pulse transmission relay (output);
- NO or NC alarm relay;
- Remote On/Of;
Optional accessories:
- Level switch;
- Flow detector;
- Multifuction and security valve.
